Key Benefits

• Meets IEEE 1789-2015 “no impact” recommended practices for flicker
• UL8750 Class P, Class 2 power supply
• Lifetime:  50,000 hours @ Tc + 75 °C
• 90 °C maximum case hot spot temperature
• IP20-rated case with silicone-based potting
• Indoor surge protection:
  •  IEC61000-4-5:  2kV line to line/2 kV line to earth
• 2.5 kV ring wave:  ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
• Complies with ENERGY STAR®, DLC (Design Light Consortium®), and CA Title 24
  technical requirements

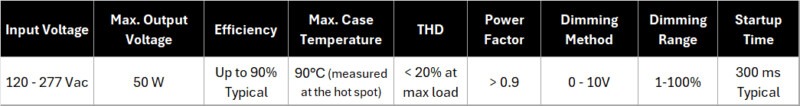

➥ ERP PLB Series Data Sheet

Programming

• USB audio jack programming
  • Current : 100% to 50% in each voltage range
  • Data log read: SKU, S/N, lot code, hours of operation, FW rev.
• Fully programmable and selectable 0-10V dimming profiles: Non-linear, Logarithmic

Applications

Include but are not limited to:

• Open offices
• Lobbies
• Retail stores
• Department stores
• Fitness centers

WPGA’s Innovation Technical Center (ITC) has a team of highly trained engineers that can recommend the best solution for your needs.
