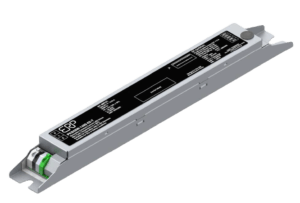

PLS Series 20-65W Programmable
Constant Current Class 2 LED Driver

Key Benefits

  • UL Class P
  • Class 2 output
  • Active Ripple Rejection
  • Synchronized Start-up: 20 ms
  • Lifetime 5 yeaers @ Tc ≤ 75°C
  • 90°C maximum case hot spot teperature
  • Surge Protection
    • IEC61000-4-5: 6kV line to line/6 kV line to earth
    • 2.5 kV ring wave: ANSI/IEEE c62.41.2-2002
  • Complies with ENERGY STAR®, DLC (Design Light Consortium®), and CA Title 24 technical requirements
  • Meets IEEE 1789-2015 “no impact” recommended practices for flicker

➥ ERP PLS Series Data Sheet

Programming

  • Audio jack and cradle programming
  • Current range:
  • Fully programmable and selectable 0-10V dimming profiles: Non-linear with dim-to-off, Logarithmic, Non-linear without dimming
  • Data log read:  SKY, S/N, Iot code, hours of operation, FW rev, power cycles

Applications

  • Commercial & Residential Lighting
  • Architectural Lighting
  • Indoor Lighting

Need help with your next design?

WPGA’s Innovation Technical Center (ITC) has a team of highly trained engineers that can recommend the best solution for your needs.

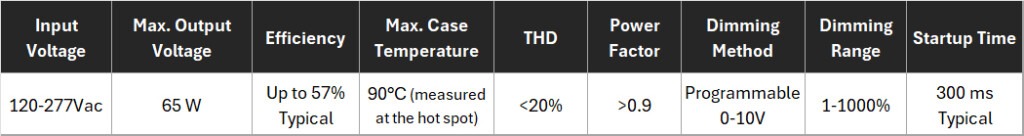

Device Specifications
